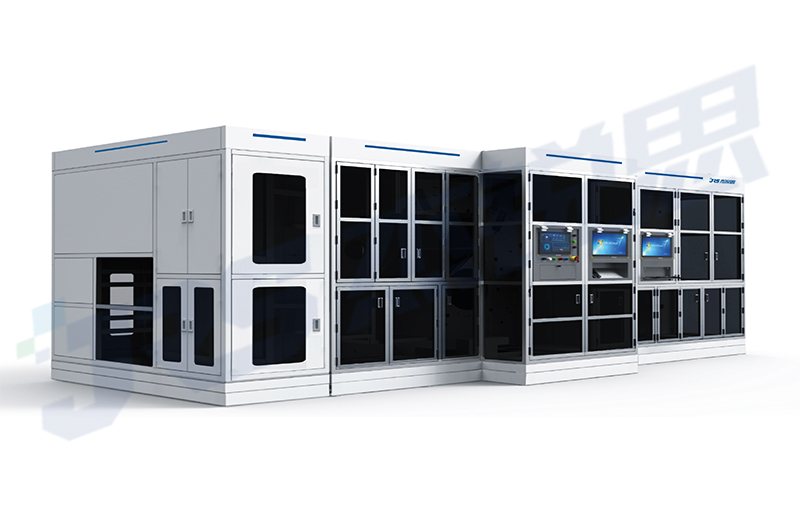

High Speed Power Winding Machine

Information

Advantages:
·Three roll needle design, changing workstations for uninterrupted continuous winding and installation.
·Reducing waiting time for threading and locking and shorten auxiliary time to 0.9s.
·DD motor coil needle direct drive technology, station change time≤0.5s, winding speed≥3000mm/s.
·Adopting active caching mechanism and feedforward synchronization algorithm, the electrode runs smoothly, reduce breakage.
·Full closed-loop tension control, voice coil motortension mechanism, tension fluctuation+15gf.
·Equipped with variable winding needles, achieveautomatic adjustment of circumference+2mm.
·Micro tension winding, increased separator maindrive, tension can be stably controlled at 50gf.
·Data-driven intelligent control system that achievesfull closed-loop control and intelligent control through deep mining, storage, analysis of data.

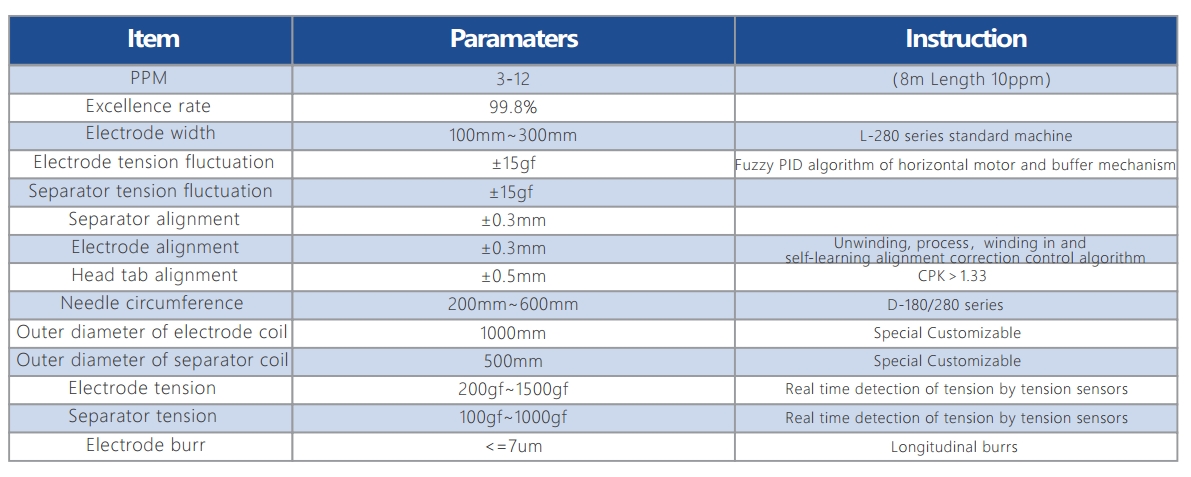

Parameters:

*The above parameters are subject to the actual product
