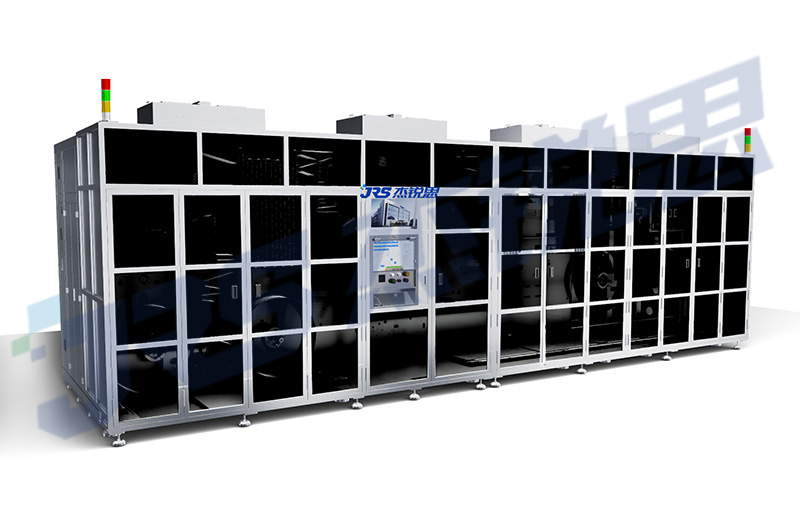

Cylinder 46 Series Laser Notching & Winding Integrated Machine

Information

Advantages:
·DDR motor needle winding direct drive technology.winding speed up to 3000mm/s,overall efficiency 20PPM.
·Needle rolling servo technology for needle pulling, solving the problem of core pulling.
·Transposition synchronous needle threading technologyThree stage (pre folding,flattening, and tapping)tab flattening technique.
·Active synchronous caching technology for electrodesand diaphragms, independent position and tension controlNeedle rolling servo technology for needle pulling,solving the problem of core pulling.
·Transposition synchronous needle threading technology.
·UVU ultrasonic dust removal and laser suspensionnotching technology.
·Notching and pasting adhesive flying notching(pasting)technology, synchronous control.
·EPC correction, serpentine correction, first insertion correction,and coil clamping correction functions.
·OH photo taking function for each circle, CCD detectionof battery cell and tab flange detection.

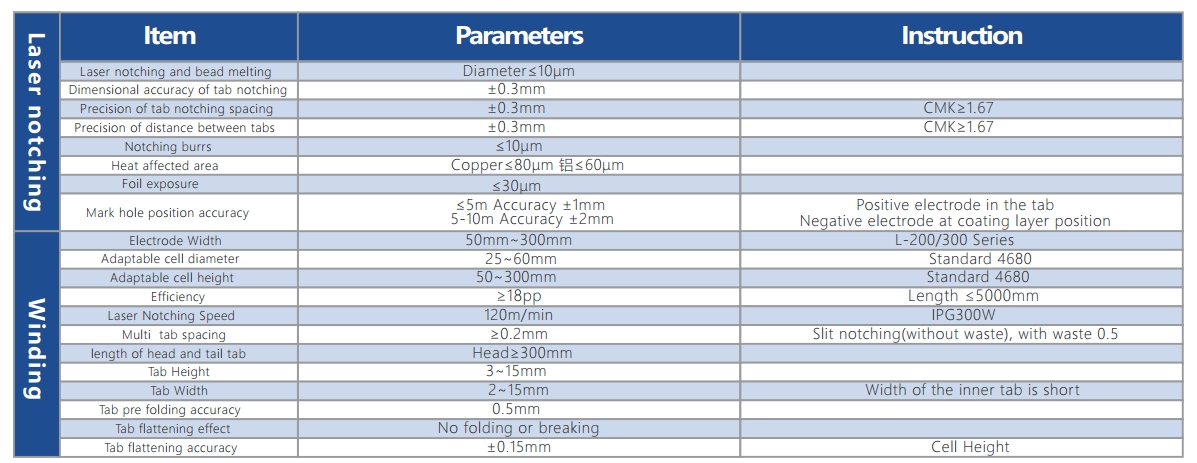

Parameters:

*The above parameters are subject to the actual product
