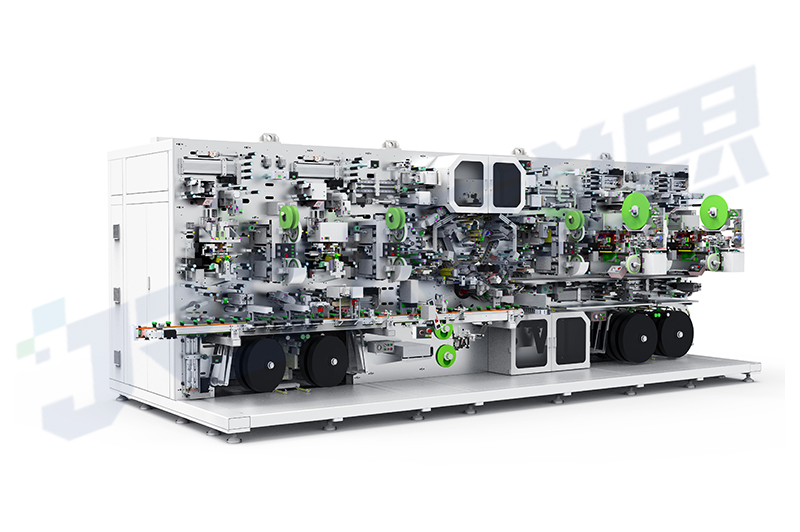

21700/18650 Cylindrical Welding and Winding Integrated Machine

Information

Advantages:
·DDR motor needle winding direct drive technology.with a maximum winding efficiency of > 45ppm.
·Synchronous needle threading technology forchanging workstations (built-in servo for the secondrolling needle) to improve efficiency.
·Active synchronous caching technology for electrodes separators, with independent position and tension control.
·Needle rolling servo technology(needle slope design), solving the risk of core pulling(optional).
·Roller feeding and insertion method, with short hanging of electrode head, enhances superhang ability.
·CCD detection of OH in the winding position, achieving photo taking for each turn and closed-loop control with the correction mechanism.
·Multi level linkage correction mode, solving the risk of tab wrinkling caused by large deviation amplitude in the roll in correction.
·Fully automatic roll, adhesive tape, and tab roll changing technology, without the need for manual laborimproving OEE.
·Servo welding+adjustment welding head parallelism technology.
·Independent servo control for adhesive position, ensuringalignment of tape and closed-loop detection with CCD.
·The diameter range is 16-28mm, compatibility withdiaphragm and negative electrode outsourcing.

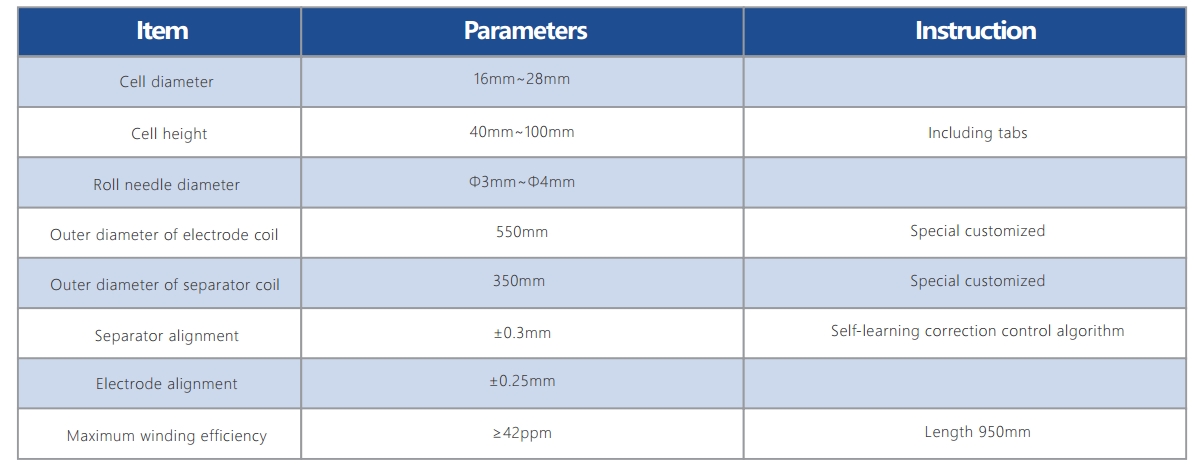

Parameters:

*The above parameters are subject to the actual product
