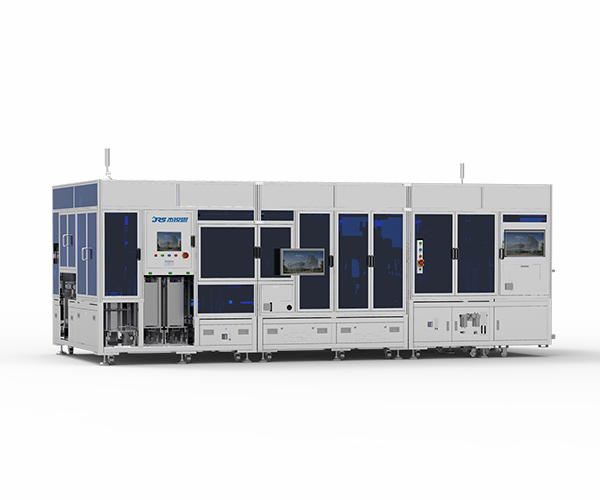

Battery Cell Packaging Machine

Information

Advantages:

1. Replace manual packaging and reduce labor costs.
2. High production capacity, one packaging machine can connect to multiple sorting machines simultaneously.
3. High precision AOI detection with higher accuracy and efficiency than manual inspection.
4. The packaging material input adopts a dual compartment design, which can achieve non-stop material replacement.
5. The modular design can quickly change types.

Parameters:

1. Capacity:10s/pack.
2. Fragment rate: ≤0.005%.
3. Equipment utilization rate: ≥99%.
4. Camera count accuracy: ≥99.8%.
5. Battery edge collapse and missed detection rate: ≤0.2%.
6. Battery edge collapse inspection rate: ≤2%.
7. Equipment length, width, and height: 5.4m*2.4m*2m.
8. Total power: 20KW; Power supply: 220V±10%, frequency 50HZ.
9. Air pressure: 0.5-0.7MPa.
*The above parameters are subject to the actual product.

Applications:

Applicable battery cell outer dimensions: 166mm-230mm.
Applicable battery cell thickness: 100μm-160μm.
